Aegisub Options

Aegisub is highly customizable and hence has a large amount of user-changeable options. These are available in the options dialog box, found in the View menu. This page is a reference of all the available options.

Aegisub stores all its configuration in a plain text file called config.json which by default is stored in the ?user directory. If you want to reset Aegisub to its default options without reinstalling the program, you can just delete config.json and restart Aegisub.

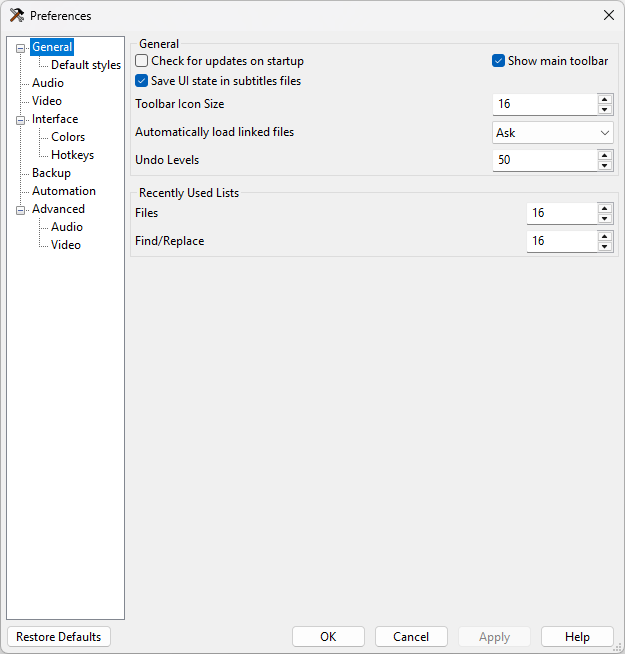

General #

Check for updates on startup

If enabled, Aegisub will periodically check whether there is a newer version available, and alert you if there is. Requires a working connection to the internet, naturally.

Show main toolbar

If disabled, Aegisub’s main toolbar is hidden.

Save UI state in subtitles files

By default, Aegisub saves things like the current scroll position of the subtitles grid and active row number in the subtitles file so that it can be automatically restored when you reopen the file. However, if you’re using source control for your subtitle files you may want to disable this to reduce the noise in the changes.

Toolbar icon size

The size of icons to use in all of the toolbars in Aegisub. Not all icon sizes are possible, the sizes only go up in discrete steps. Without any additional DPI scaling, the valid sizes are currently 16, 24, 32, 48, and 64.

Automatically load linked files

Whenever you save a script, Aegisub also stores some information about what video, audio and timecodes files you had open while working on it, inside the script itself. This option decides what Aegisub does with these files that are “linked” to the script when opening it. If set to “ask”, Aegisub will ask you if you want to load linked files. If set to “never”, Aegisub will never load linked files, and likewise if set to “always”, Aegisub will always try to load linked files (and report an error if the file(s) were not found).

Undo levels

The maximum number of changes that can be undone. The higher this value, the more memory Aegisub will use.

Recently Used Lists

Maximum number of items to remember for all of the various lists of recently used items in Aegisub. The memory impact from increasing these is trivial, but larger lists may get unwieldy to use.

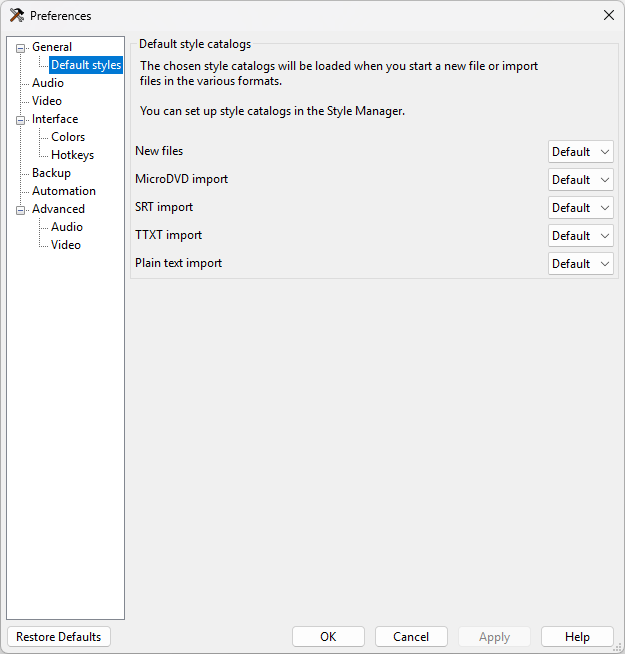

Default Styles #

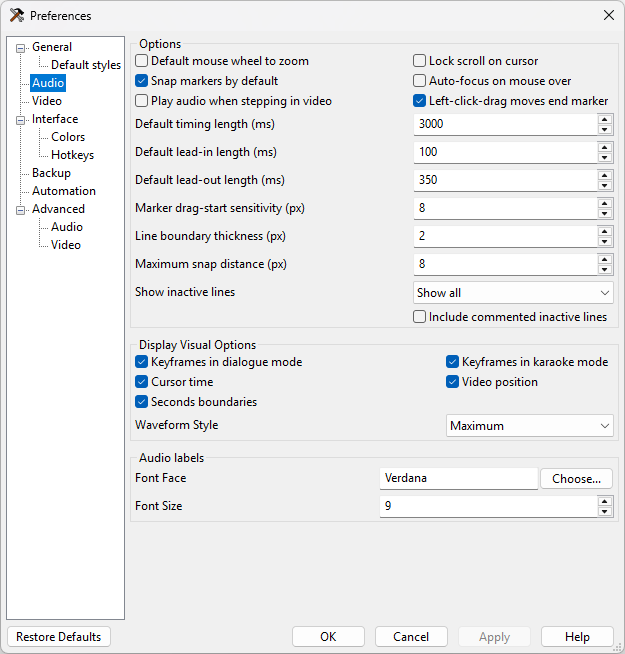

Audio #

Lock scroll on cursor

When enabled, the audio waveform view will automatically scroll to follow the playback cursor if it gets too close to either of the edges.

Snap markers by default

When enabled, Aegisub will default to snapping audio markers to other markers in the audio display (such as keyframes and the start or end times of other lines) when moving them by clicking or dragging them if they are close enough. Snapping can be toggled on or off by holding down shift.

Default mouse wheel to zoom

When enabled, the mouse wheel will zoom the audio display horizontally by default, and scroll the audio display when Ctrl is held down. If disabled, this is reversed.

Auto-focus on mouse over

If enabled, moving the mouse cursor over the audio waveform will automatically give it focus (as opposed to requiring a click).

Play audio when stepping in video

When enabled, frame stepping plays the audio for that frame.

Default timing length

The default length of a new untimed line, in milliseconds.

Default lead-in length

Default lead-out length

The duration added to the start of a line by the “add lead-in” and “add lead-out” functions. Also used in (and set by) the timing postprocessor.

Marker drag-start sensitivity

The distance in pixels that a marker must be dragged for it to register as a drag. Higher values reduce the chance of accidental changes, at the cost of worse responsiveness.

Left-click-drag moves end marker

When enabled, left clicking will set the start time of the line to the clicked point, then set the end time of the line to the point dragged to, making it possible to time a line with a single click-drag movement. When disabled, left-click-drag always updates only the start time of the line, as right-click does with the end time.

Line boundary thickness

The width, in pixels, of the line start and end markers.

Maximum snap distance

Maximum distance to snap markers to other markers, in pixels.

Show inactive lines

Controls how lines surrounding the currently selected line are displayed in the audio waveform. “Don’t show” will only display the current line. “Show previous” will show the previous line (in the grid, not chronologically) in gray in addition to the current line. “Show next and previous” will show the lines before and after the current line (in the grid, not chronologically). “Show all” will show all lines in gray in addition to the current line.

Include commented inactive lines

If disabled, commented lines will be skipped over when picking which inactive lines to show in the audio display (making “Show previous” into “Show last uncommented line before this line”, and so on).

Display Visual Options #

keyframes

If enabled, lines marking the positions of keyframes in the video will be drawn on the audio waveform when in dialogue timing mode (the default).

Karaoke keyframes

If enabled, lines marking the positions of keyframes in the video will be drawn on the audio waveform when in karaoke timing mode.

Draw cursor time

If enabled, a timestamp showing the time since the start of the file will be drawn near the top of the audio waveform cursor.

Video position

If enabled, a line is drawn in the audio display marking the start time of the current video frame.

Waveform style

Selects which of the waveform rendering styles to use

Maximum + Average

The waveform is two-tone, indicating both the maximum value of a sample within a pixel’s time range, and in a brighter color, the average value of all samples within the time range.

Maximum

The waveform displays only the maximum value, as previous versions of Aegisub did.

Audio labels #

These options control the appearance of labels drawn in the audio display for karaoke syllables.

Font Face

The font to use for audio labels.

Font Size

The font size to use for audio labels.

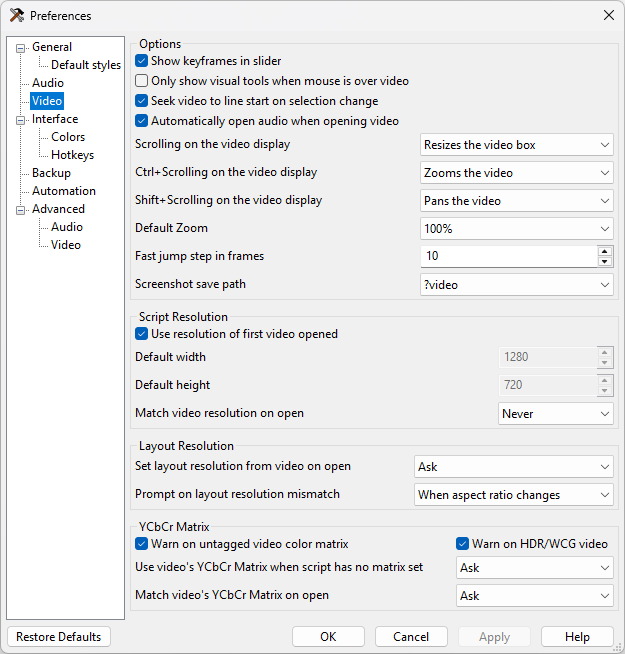

Video #

Show keyframes in slider

When enabled, Aegisub will draw keyframe markers on the video seek slider.

Seek video to line start on selection change

When enabled, whenever the active line is changed Aegisub will automatically seek the video to the first frame of the new line. Note that this can by done manually by double-clicking on the grid, or by pressing Ctrl-1.

Always show visual tools

When disabled, the visual typesetting tools are only rendered when the mouse is over the video display.

Automatically open audio when opening video

When enabled, when you open a video file which also has audio data, Aegisub will automatically load the audio.

Scrolling on the video display

Determines what happens when scrolling the mouse wheel while on top of the video display. By default, this changes the size of the video display on the screen, but it can be configured to zoom or pan the video instead, or to do nothing at all. The latter two options can be especially useful when working on a touchpad.

Ctrl+Scrolling on the video display

Same as above, but determines what happens when scrolling while holding the ctrl key.

Shift+Scrolling on the video display

Same as above, but determines what happens when scrolling while holding the shift key.

Default zoom

The default video zoom level. Useful if you have a very big or very small screen.

Fast jump step in frames

Decides how big “jumps” Aegisub will make when you use the fast seek feature (Alt-rightarrow and Alt-leftarrow). Measured in frames.

Screenshot save path

Decides where Aegisub should save screenshots. The default is ?video, which means they are saved to wherever the video is, but you can change it to any path you like. Aegisub_path_specifiers are supported; another option directly available in the dropdown is ?script, which is wherever the script is.

Script resolution #

Use resolution of first video opened

When enabled, Aegisub will automatically set the script resolution to the video resolution if you open a video and the script resolution is not yet set. If this is disabled, Aegisub instead sets the script resolution to a configurable default.

Match video resolution on open

Controls what Aegisub will do about script resolution when you open a video. If set to “never”, Aegisub will do nothing if the script resolution doesn’t match the video resolution. If set to “ask”, Aegisub will ask you if you want to change the script resolution to match the video resolution if they don’t match. If set to “always”, Aegisub will always resample the script to match the video resolution automatically.

Layout resolution #

Set layout resolution from video on open

Controls what Aegisub will do when opening a video on a subtitle file that does not yet have a layout resolution set.

Prompt on layout resolution mismatch

Controls whether to show a prompt when opening a video whose resolution or aspect ratio differs from the subtitle file’s layout resolution.

YCbCr Matrix #

Warn on untagged video color matrix

Whether to show a warning when loading a video that does not contain color space metadata specifying a color matrix and range.

Warn on HDR/WCG video

Whether to show a warning when loading a video that has HDR and/or WCG colors.

Use video’s YCbCr Matrix when script has no matrix set

Controls what Aegisub will do when opening a video on a subtitle file that does not yet have a YCbCr Matrix set.

Match video’s YCbCr Matrix on open

Controls what Aegisub will do when opening a video whose color matrix differs from the subtitle file’s YCbCr Matrix header.

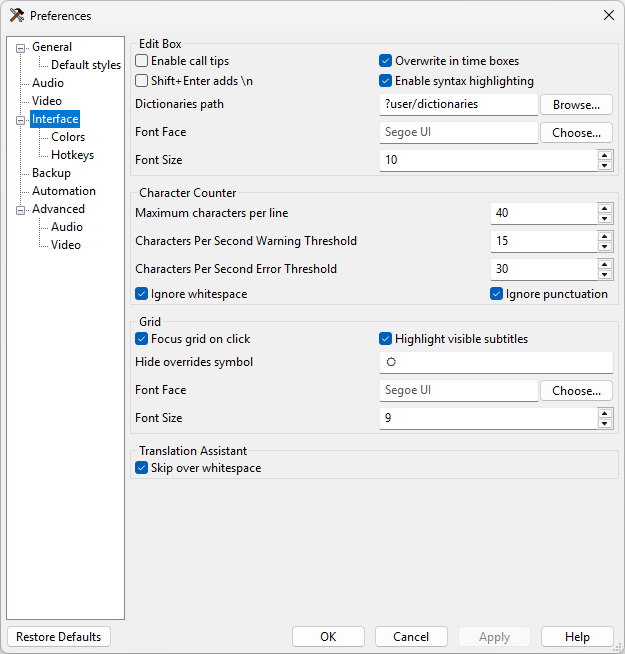

Interface #

Enable call tips

When enabled, Aegisub will detect when you are writing an override tag and display a small box with a brief reference of the syntax of the tag in question until you close the tag. This is called a “call tip” and the feature may be familiar to users of various programming IDEs.

Overwrite in time boxes

Controls the behavior of all time edit boxes in the program. By default, all time edit boxes in Aegisub behave like as if you had pressed the Insert button, so every digit you type overwrites what is already there, and you cannot erase numbers that are already there, you have to overwrite them. Unticking this box disables this behavior and makes the time edit boxes behave just like normal text edit boxes (almost).

Shift+Enter adds \n

If checked, pressing Shift+Enter in the subtitle edit box will insert a soft line break (\n). Otherwise, it will insert a hard line break (\N).

Enable syntax highlighting

Enables or disables syntax highlighting of override tags in the main edit box.

Path to dictionary files

Decides where Aegisub will look for dictionary files for its spellchecker and thesaurus. By default it looks in ?data/dictionaries, but if you have your own dictionaries in the correct format somewhere else, feel free to point Aegisub there instead.

Font

Decides the font and fontsize used for the subtitle edit box and other edit boxes.

Maximum characters per line

If the value of the character counter is higher than this number, the background will turn red to alert you that you have exceeded the maximum line length. The maximum length is not enforced in any other way.

Characters Per Second Warning Threshold

Characters Per Second Error Threshold

The thresholds at which the background CPS column begins to be colored and when the error color is reached.

Ignore whitespace

If enabled, whitespace will not be included in the character count.

Ignore punctuation

If enabled, punctuation will not be included in the character count.

Focus grid on click

When enabled, the subtitles grid acts as its own area of the program and it can have focus, just like the audio or the video can, and while it does you can use the arrow keys/mouse wheel to scroll around it etc. On the other hand, if you disable this option, the focus will stay where it was before whenever you click in the grid. This means you can’t use keyboard shortcuts in the grid anymore, but on the other hand it means you can click in the grid to go to a line without losing the audio focus and so on. Use at your own discretion.

Highlight visible subtitles

When enabled, all subtitle lines that are currently visible in the video frame (or at least should be visible; Aegisub does not account for alpha and such trickery in this case; it cares only about the timing of the line) will be highlighted in the grid with a special background color (see the “Line in frame background” option below).

Hide overrides symbol

The character that will be shown instead of override blocks if tag hiding is active. Note that despite the name, this can be more than one character if you so desire.

Font

Decides the font and font size of all text in the grid.

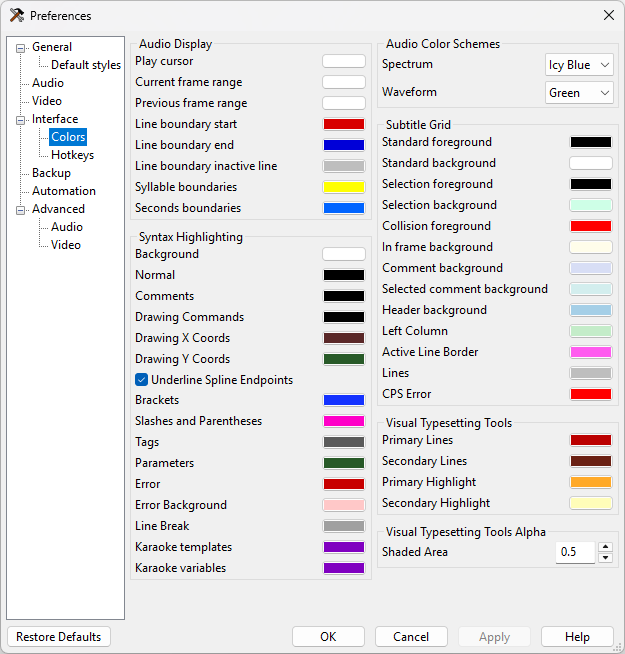

Colors #

Audio Display #

Play cursor

The color of the playback cursor.

Current frame range

Previous frame range

The color of the shaded area indicating the current and previous frame. Both the color and the transparency can be configured.

Line boundary start

Line boundary end

Line boundary inactive line

The respective colors of the various line boundary markers.

Syllable boundary

The color of a syllable boundary line in karaoke mode.

Seconds boundaries

The color of the lines drawn on every whole second.

Audio Color Schemes #

Controls the color scheme used for the waveform/spectrum and some of the UI elements. Aegisub currently does not have a UI for editing the color schemes or creating new ones, but if you’re feeling adventurous they can be found in config.json.

Syntax Highlighting #

Background

The background color of the subtitle edit box.

Normal

The color of normal text.

Comments

The color of text in override blocks that is not part of any override tag

Drawing Commands

The color of commands (m, l, b, etc.) in drawings

Drawing X Coords

Drawing Y Coords

The color of X or Y coordinate values in drawings

Underline Spline Endpoints

Whether to underline the coordinates of the endpoints of Bézier splines in drawings

Brackets

The color of brackets that start/end override blocks.

Slashes and parentheses

The color of backslashes and parentheses within override blocks.

Tags

The color of tag names within override blocks.

Parameters

The color of parameters to override tags.

Error

The error color for invalid syntax within an override block.

Error background

Background color for errors.

Line break

Color for \N, \n and \h outside of override blocks.

Karaoke templates

Color for karaoke templater Lua blocks on template lines.

Karaoke variables

Color for karaoke templater variables on template lines.

Subtitle Grid #

Standard foreground

Standard background

The normal color of lines in the grid. “Foreground” is the text color, and “Background” is obviously the background color.

Selection foreground

Selection background

The color of selected lines in the grid.

Collision foreground

The text color of lines whose timings overlap with the currently active line.

Line in frame background

The background color of lines currently visible in the video frame.

Comment background

Selected comment background

The background color of commented-out lines and selected commented-out lines, respectively.

Header

Left column

Active line border

Lines

The color of the grid lines and fixed columns/headers.

CPS Error

The color in which high CPS (characters per second) values should be highlighted.

Visual Typesetting Tools #

Controls the colors used for the on-screen indicators and draggable markers of the visual typesetting tools.

Primary Lines

Line color of the currently selected marker.

Secondary Lines

Line color of unselected markers.

Primary Highlight

Fill color of the currently selected marker.

Secondary Highlight

Fill color of unselected markers.

Visual Typesetting Tools Alpha #

Shaded Area

Transparency level of the shaded area for the visual clip tools.

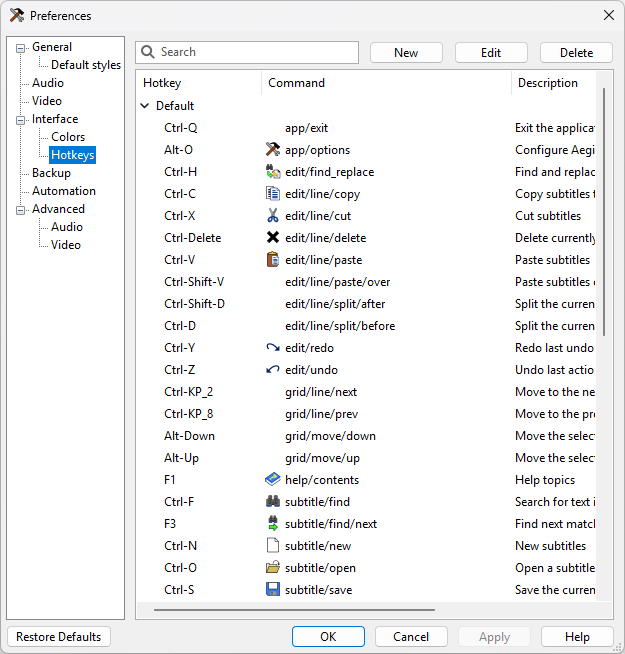

Hotkeys #

This page lists all hotkeys currently set in Aegisub, and allows you to add, remove or change them.

Hotkey Contexts #

Aegisub supports setting different hotkeys depending on what part of the program has focus.

The “Default” group is for hotkeys which should work regardless of what in Aegisub currently has keyboard focus. Hotkeys set in Default are overridden by the more specific categories when applicable.

The “Always” group sets hotkeys which are enabled by Medusa mode, which apply everywhere in the program and override all other keypresses, including ordinary typing in edit boxes.

All other hotkey contexts should be self-explanatory.

Setting hotkeys #

To modify a hotkey, first click on the row to select it, then click on the hotkey field in the row, then press the key(s) that should trigger the command. Accept the new hotkey by clicking on another row.

To add a new hotkey, select the context you want to add the hotkey to, then click the New button. Enter the command name, then set the hotkey as when editing them.

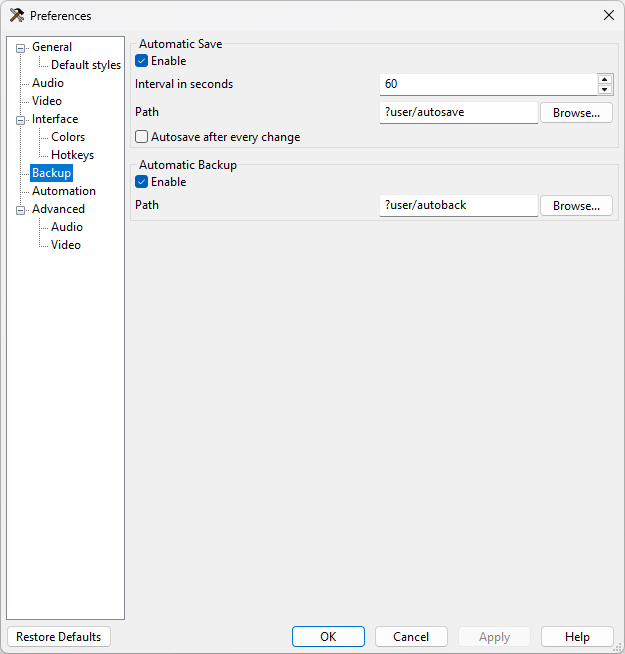

Backup #

Automatic Save #

Enable

If enabled, Aegisub will periodically save a copy of the script you are working on to the autosave path.

Interval in seconds

How often should Aegisub autosave.

Path

Decides where to save autosaved copies of scripts you are working on. By default set to autosave in your Aegisub ?user directory (see the Aegisub_path_specifiers page for details).

Autosave after every change

If enabled, Aegisub will save the file after every change made to it. Note that this currently causes some problems with the undo system.

Automatic Backup #

Enable

If enabled, Aegisub will save a backup copy of each script you open, immediately on opening it. By default, it is saved to ?user/autoback/, but this can be changed (see below).

Path

Decides where to save automatic backup copies of scripts. By default set to autoback in your Aegisub ?user directory.

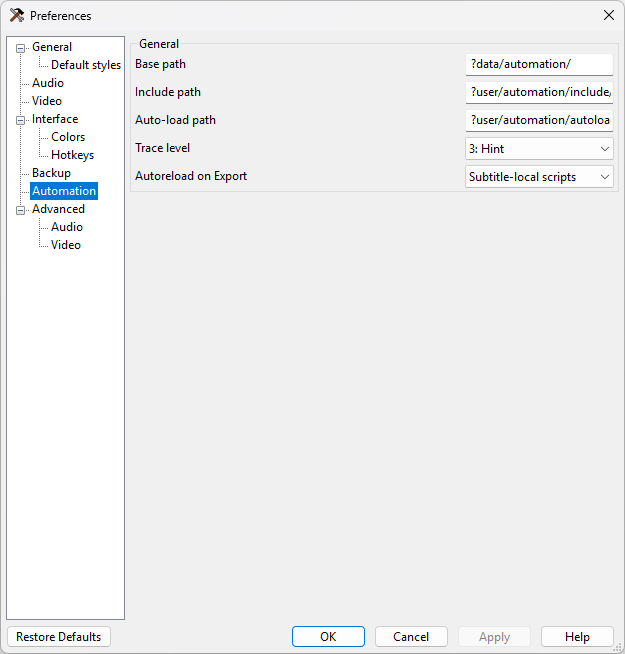

Automation #

Base path

A base directory where you put non-autoloaded automation scripts. Used only for saving paths to script files in the subtitles.

Include path

List of directories where include files and modules are searched for. Directories are separated with a pipe character, |.

Auto-load path

List of directories that are searched for scripts on startup, which are then automatically loaded. Directories are separated with a pipe character, |.

Trace level

When a script sends a message to the debug console it can also specify a trace level. If the trace level of a message is lower than the value given here, the message is not logged. The names given to the levels are only suggestions and they don’t have any effect on the execution of the script. (i.e. a “Fatal” level message will not cause the script to terminate.)

Autoreload on Export

Automatically reloads the specified sets of scripts when the Exporting dialogue is opened. In that case you will have to enter the Automation/Manager window and determine the cause of the error.

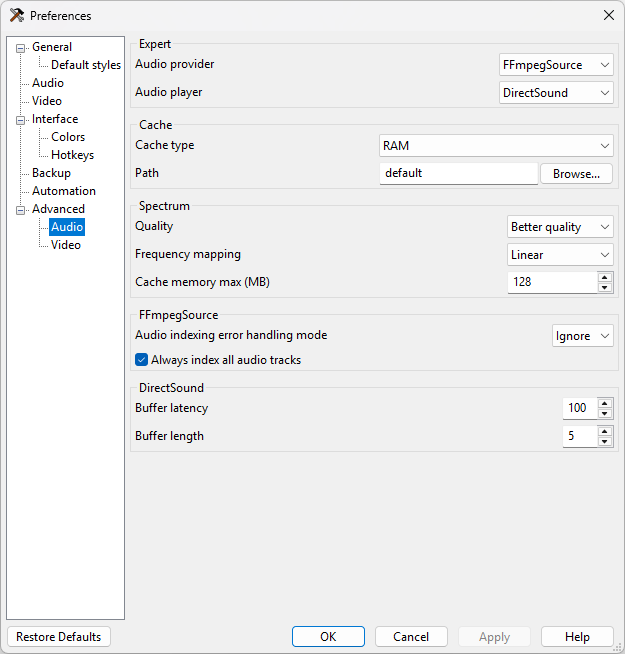

Advanced Audio #

Audio provider

What backend to to use for loading audio. This option exists because more than one provider used to be available in the past, but currently, only the FFmpegSource provider is available.

Regardless of this setting, the internal PCM WAV reader will always be tried first for WAV files.

Audio player

What method to use for playing back audio. The options depend on the platform.

DirectSound (Windows only)

Uses Microsoft DirectSound to play back audio. This is the best tested and most stable audio player.

DirectSound-old (Windows only)

Aegisub’s original implementation of the DirectSound player. If you have audio playback problems when using the DirectSound player this one may work better (but probably won’t).

alsa (Linux only)

Uses the Advanced Linux Sound Architecture to play back audio. ALSA is the native sound architecture of Linux and is not available on any other systems.

pulse (Linux and other *NIX-like systems)

Plays sound back through a PulseAudio sound server.

portaudio

Use the PortAudio API to play back sound. PortAudio has different playback implementations on different platforms. On most Unices it uses Open Sound System (OSS) for output. It is currently the only Windows audio player which supports selecting the output device.

openal

Uses the OpenAL API to play back audio. This is the recommended player on OS X. It is normally not included in windows builds due to that it adds an extra dependency for little benefit.

Cache #

Cache type

Use RAM unless you have very little of it, then use Hard Disk. The cache is not needed and not used when PCM WAV files are opened. If you disable caching, audio playback might become very unreliable.

Path

File name

These options determine where the hard disk audio cache will be located. Only used if cache is set to hard disk. You shouldn’t need to change this unless you’re low on disk space. For the name, the string expects a printf-style “%i” parameter, that will be replaced with a number. “%02i” is used by default. Don’t change that unless you know what you are doing.

Spectrum #

Spectrum quality

Determines the quality of the audio spectrum display. Higher quality settings result in larger CPU and RAM use. Each consecutive setting uses a bit more CPU than the previous, and double the amount of RAM. For 48 kHz sample rate audio, one minute of audio uses this much memory at the different settings:

0 "regular"	11 MB
1 "better"	22 MB
2 "high"	44 MB
3 "insane"	88 MB

The amount of memory used does not depend on the number of channels (Aegisub always works in mono) or the bit-depth (the spectrum is always calculated in 32 bit floating point) of the audio.

Frequency mapping

Controls the vertical positioning of the different frequencies in the spectrum display. The two possible extremes here are Linear and Logarithmic, and the other values (Extended, Medium, and Compressed) interpolate between the two. Choosing a nonlinear frequency mapping will make lower frequencies more visible, which can make it easier to make out certain sounds. They may, however, need a higher spectrum quality setting to look good.

Cache memory max

The maximum amount of memory to use for audio spectrum caching. The results of the calculations to display the audio spectrum are cached to make scrolling through the audio smoother. The amount of spectrum display that can be cached in an amount of memory depends on the quality setting above. The default cache size of 128 MB results a little less than 6 minutes of audio at 48 kHz in quality 1. If you set this smaller than 5 MB, the default of 128 MB will be used instead. You probably shouldn’t set this to more than 1/4 of your amount of physical RAM installed.

Avisynth (Windows only) #

Avisynth down-mixer

Aegisub can only use mono (single-channel) audio. This option determines which Avisynth function to use to convert audio to mono.

Force sample rate

Convert all audio opened to the given sample rate. Forcing the sample rate to the sample rate used by your sound card (rather than having the audio player do it) can potentially improve audio performance and fix playback issues.

FFmpegSource #

Audio indexing error handling mode

What to do if an error occurs while indexing an audio track.

Ignore

Ignore the error and continue decoding the file. This mode can let you open some corrupted files, but can cause audio/video desync.

Clear

Pretend that the track with the error does not exist in the file.

Stop (default)

Stop indexing at the point of the error and return all audio data before the error. This is the default due to that corrupted audio packets at the very end of files are fairly common.

Abort

Refuse to open the file at all.

Always index all audio tracks

If disabled, opening a video file will only index the video tracks, forcing you to reindex the file to open audio tracks from the same file.

Portaudio #

Portaudio device

What output device to use when playing audio through portaudio.

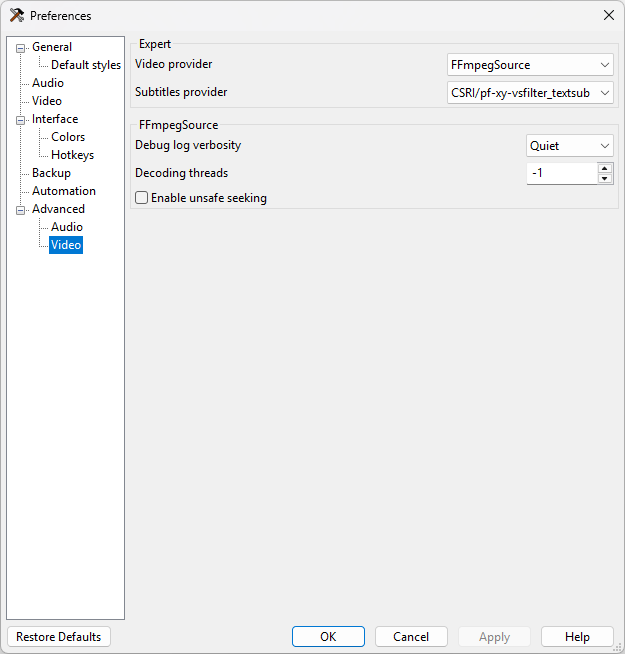

Advanced Video #

Video provider

Decides what method Aegisub should use to load video. This option exists because more than one provider used to be available in the past, but currently, only the FFmpegSource provider is available.

Subtitles provider

Decides what backend Aegisub uses to render subtitles on the video. If you install additional CSRI renderers such as VSFilterMod or xy-VSFilter (by placing the dlls in the CSRI directory within Aegisub’s directory), they will be listed here along with the default ones.

CSRI/vsfilter_textsub (Windows only)

Use VSFilter 2.40 to render subtitles. This is the standard subtitle renderer which defines the ASS format used by Aegisub.

libass

Use libass to render subtitles. libass is far faster than VSFilter and (somewhat) cross-platform, but unfortunately still has some rendering differences from VSFilter and font-related issues on Windows. If you are doing complex typesetting that will be softsubbed it is a good idea to check your work with both VSFilter and libass, as an increasing number of users are using libass.

FFmpegSource #

Debug log verbosity

Set ffmpeg/libav’s verbosity level. Only has an effect when you have a debugger attached to Aegisub.

Decoding threads

Maximum number of threads to use to decode video, or -1 to choose automatically. Setting this to 1 can fix some decoding issues at the cost of performance. There is rarely any reason to set it to a value other than 1 or -1.

Enable unsafe seeking

Disable some of FFMS2’s sanity checks when seeking in video. Makes it possible to open some files which FFMS2 cannot seek frame-accurately in.
